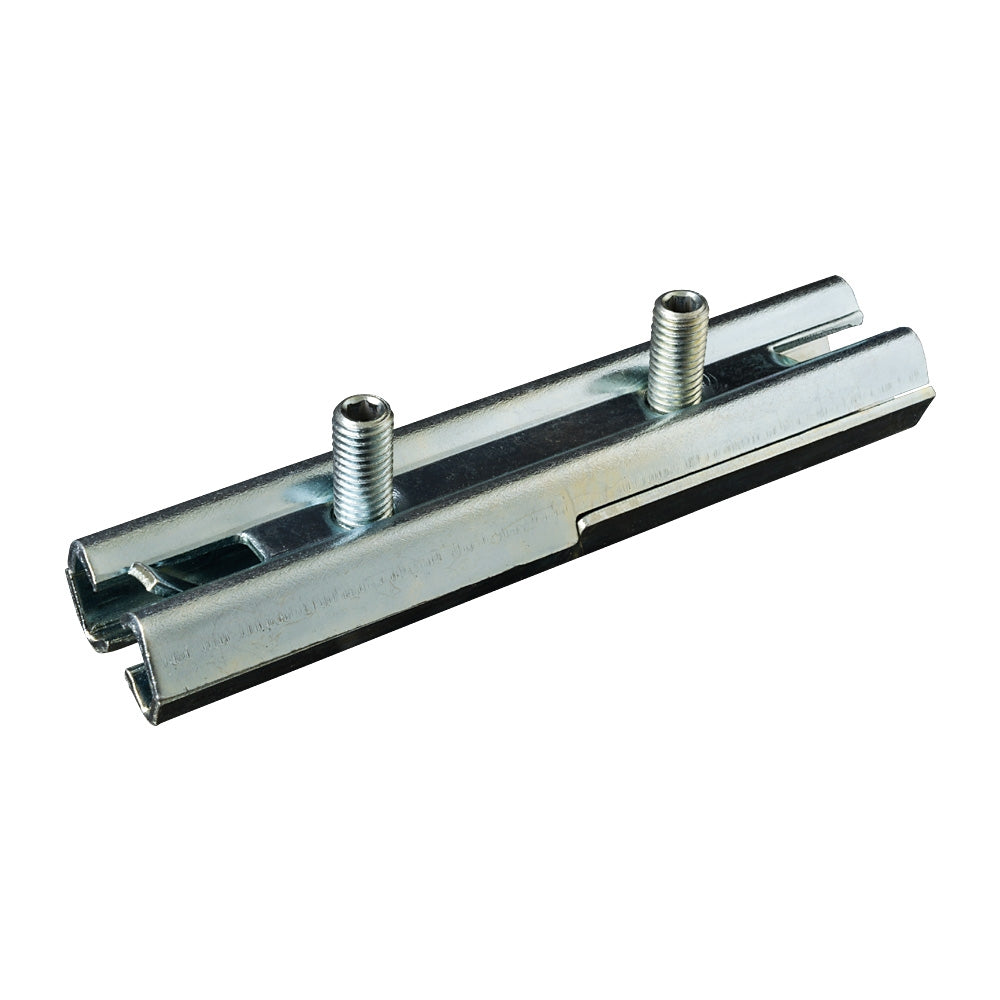

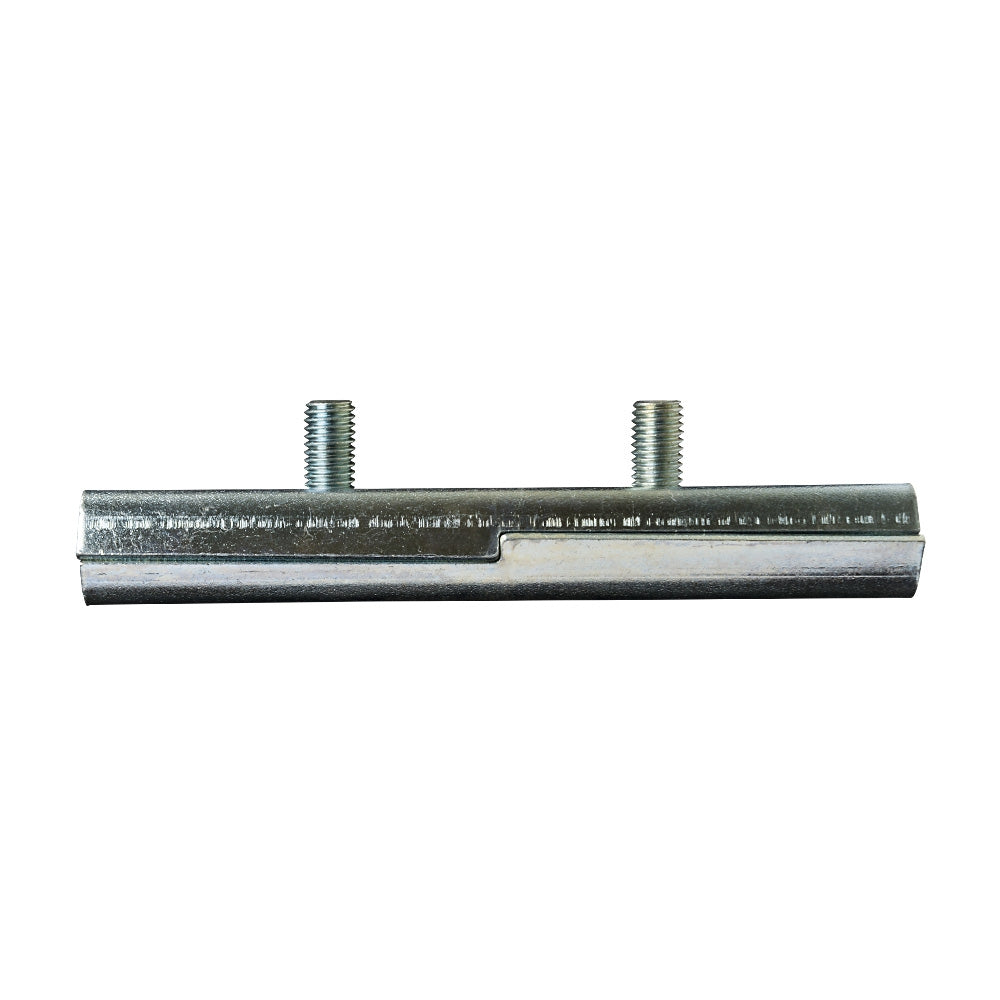

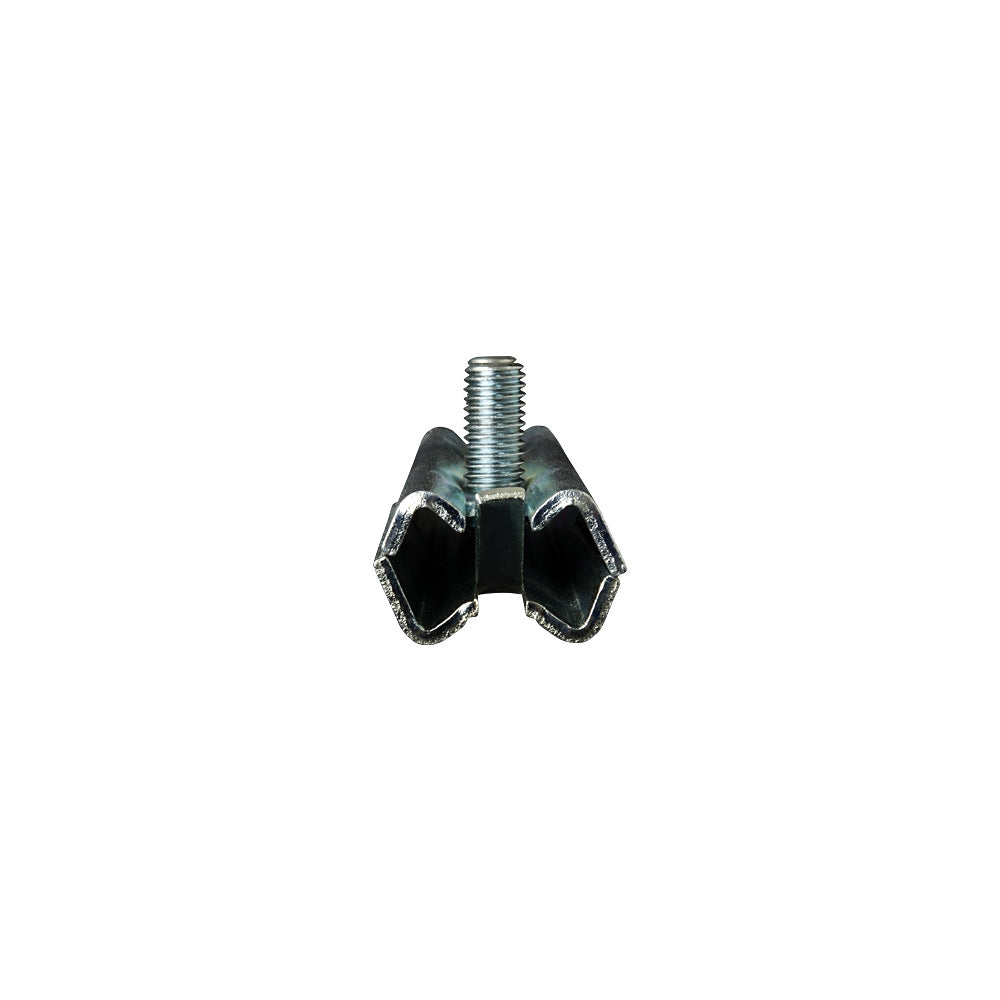

Double Screw Splice Lock To Suit 42.4mm Tube

Double screw splice lock 42.4mm (Tube wall thickness 2.6 - 4.0mm)

Highest quality pressed steel with zinc plated finish to prevent corrosion.

Typical uses are for handrails, guardrails and street furniture.

Splice locks are the most effective and convenient method of butt joining tubular railings of the same diameter. These internal expansion connectors have been engineered so that they give the perfect non-slip joint that is completely flush and virtually unnoticeable.

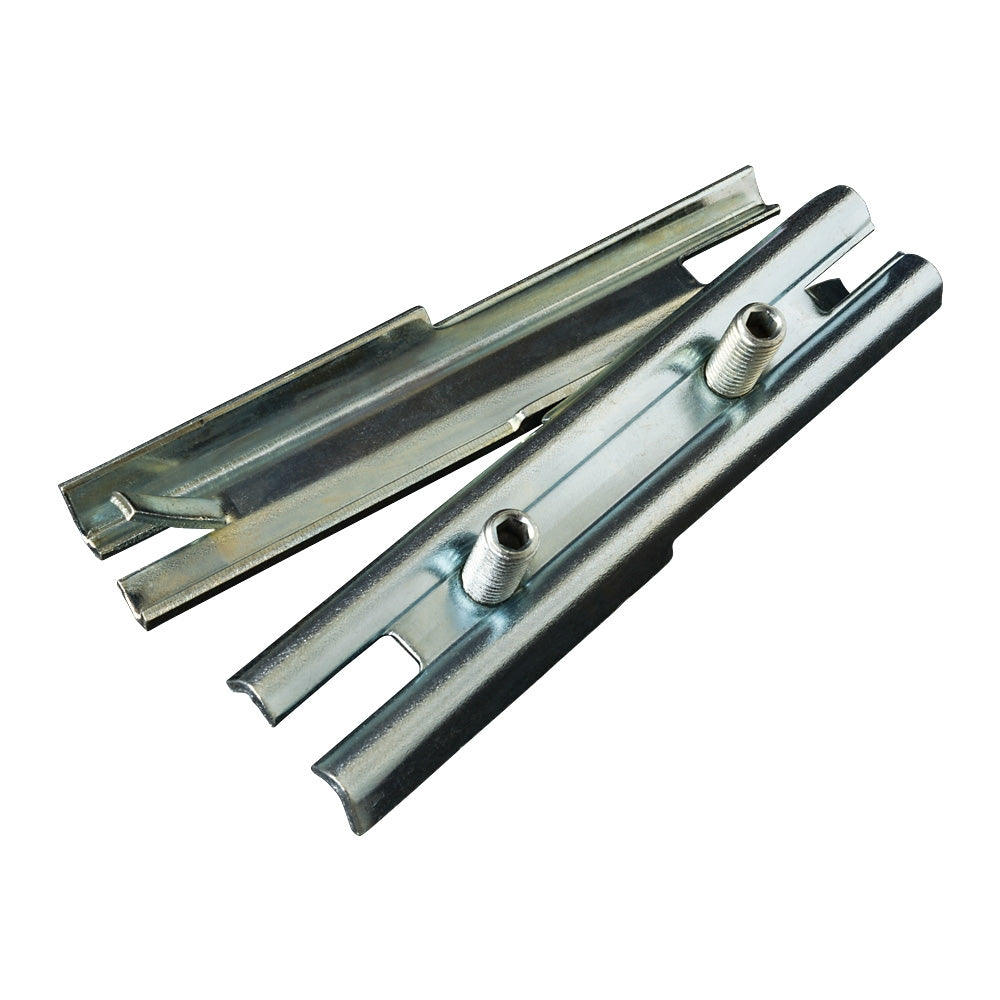

Their unique design enables them to be inserted into the tube without the two halves separating.  Once the allen screw has been tightened the splice locks contacts the tube internally in four areas along the full length this ensures alignment and maximum strength.  Splice locks can only be used to join the same size diameter tubing but allow easy on site joints to be made and are ideally suited to situations where aesthetics and durability are of prime importance.

Double screw splice locks require a 10mm hole drilled 31mm in from the end of both tubes.
