Description

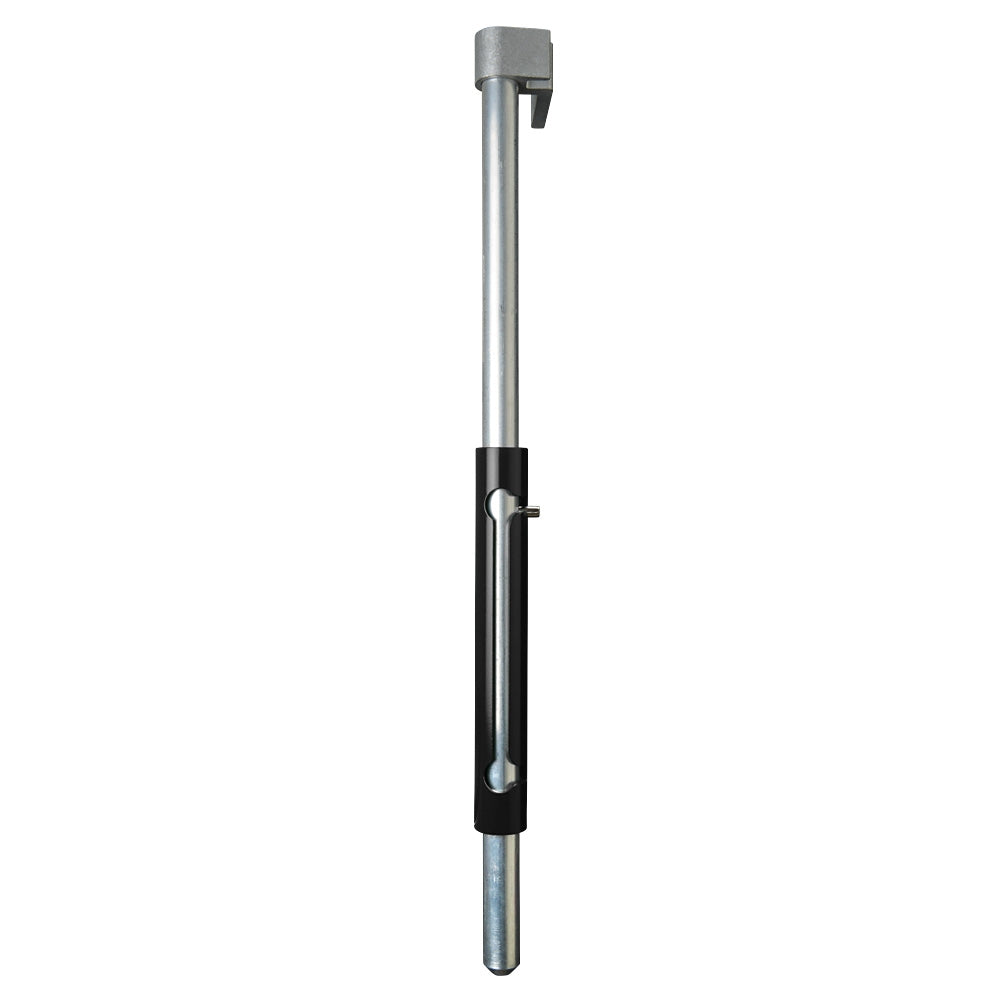

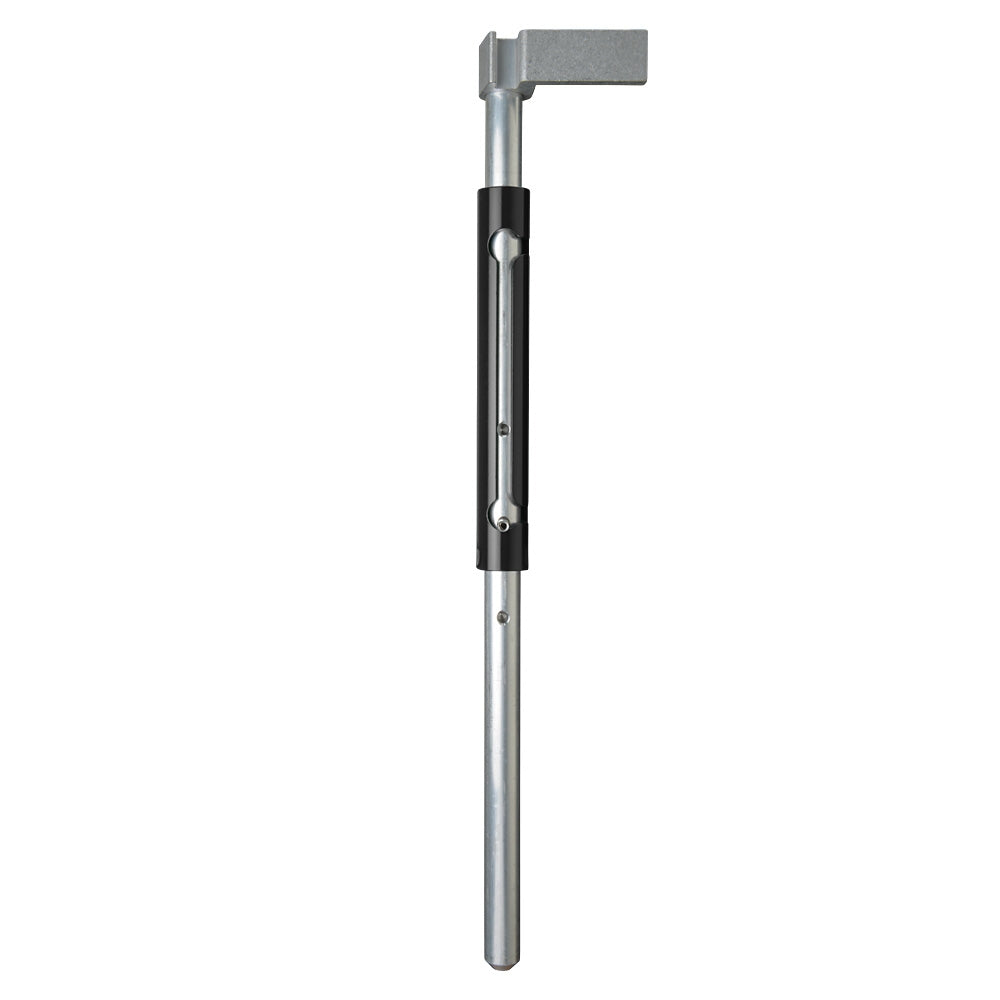

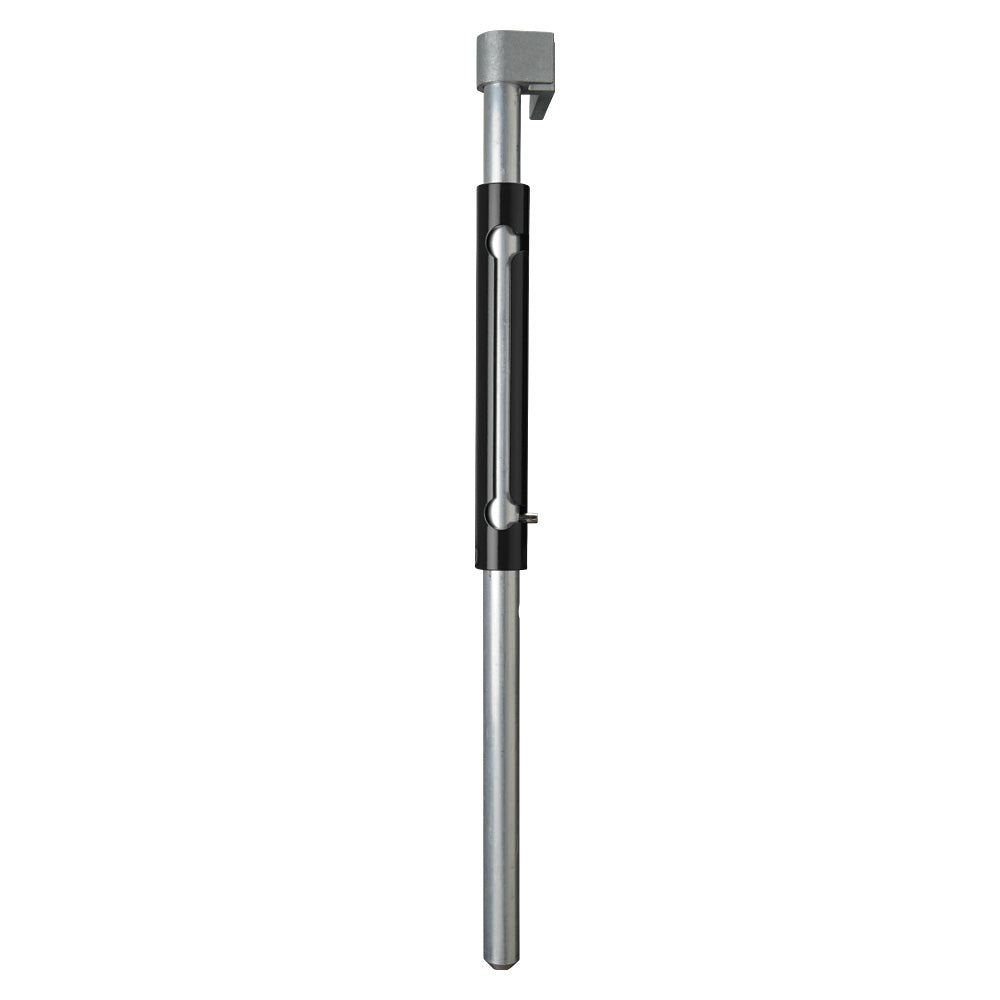

Locinox VSA Surface Mounted Dropbolt Black 9005 With Aluminium Bolt
Standard dropbolts with the innovative Quick-Fix fixing. The dropbolt is auto-locked between the gate wings after closing the gate.
- Aluminium pin
- Aluminium head block and casing
- For square profiles 40 x 40 mm or more
- Height adjustability of the dropbolt: 100 mm
- Throw: 140 mm

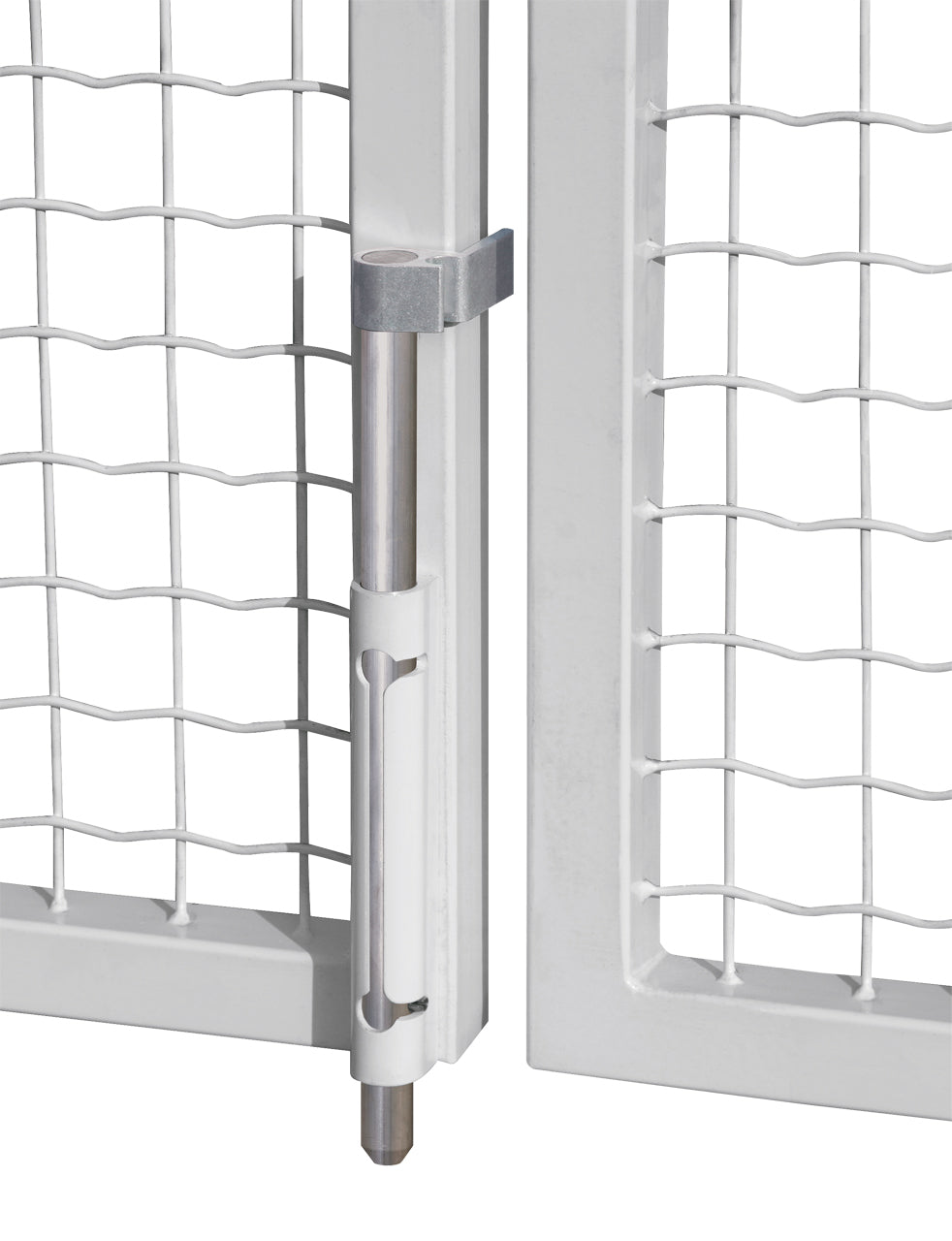

- Locks itself between the wings of the gate
- Fast and easy fixing: Quick-Fix
- Easy to retrofit
Specifications
weight: 0.74 kg
length: 490.0mm
width: 29.0mm
depth: 28.0mm
Product Documentation
LOCVSAB Product Dimensions
