Description

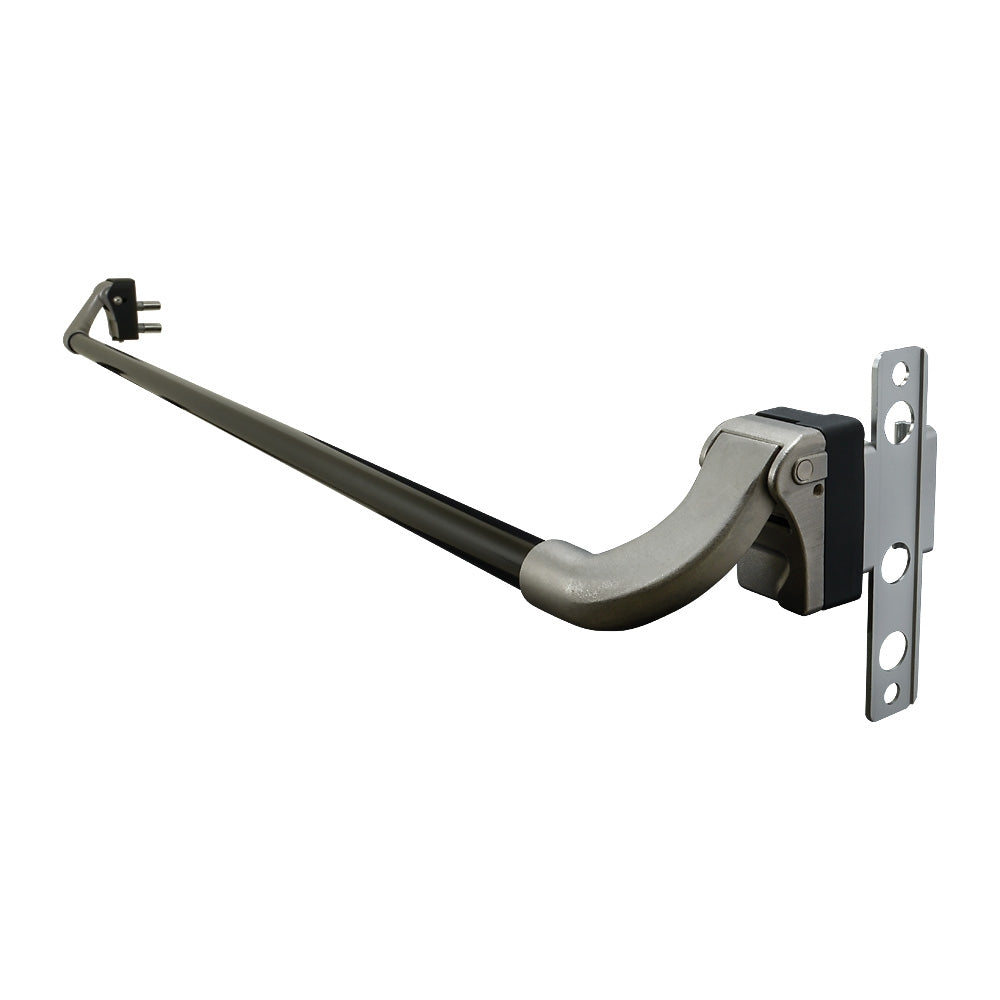

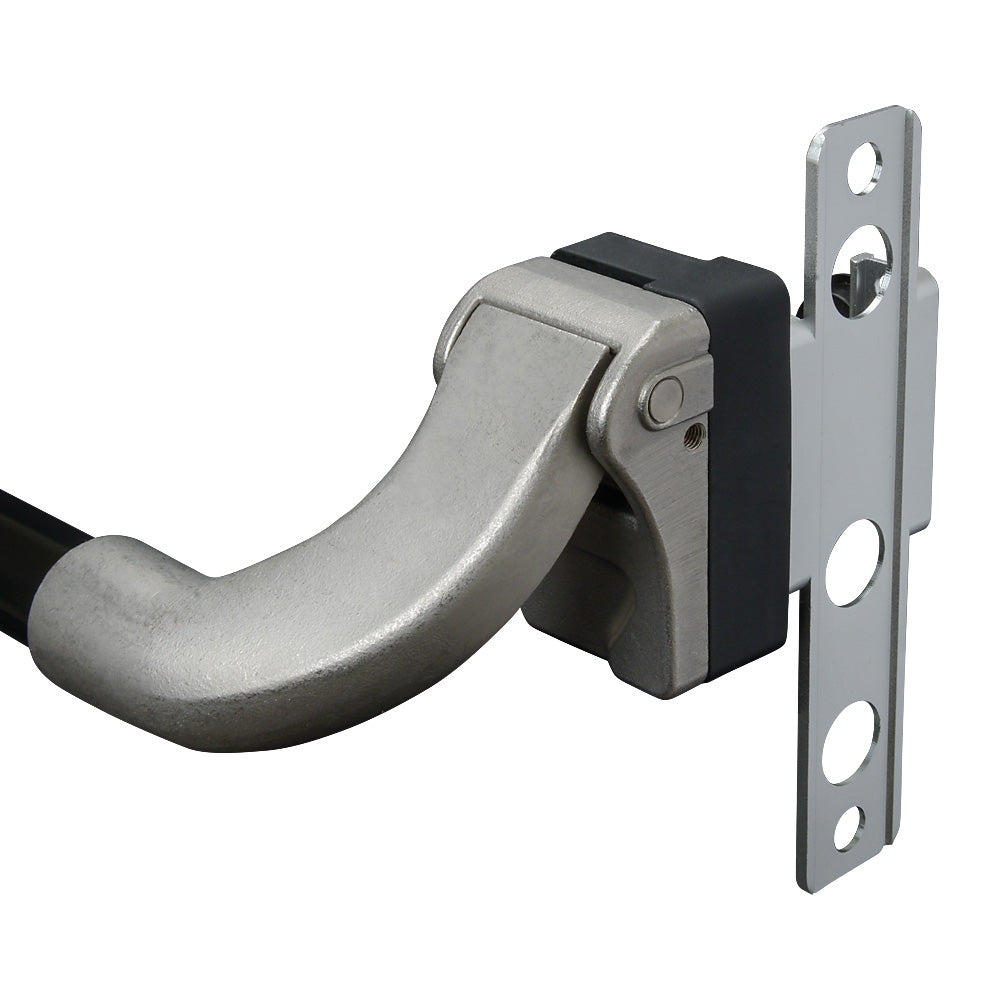

PUSHBAR Locinox Aluminium Push Bar

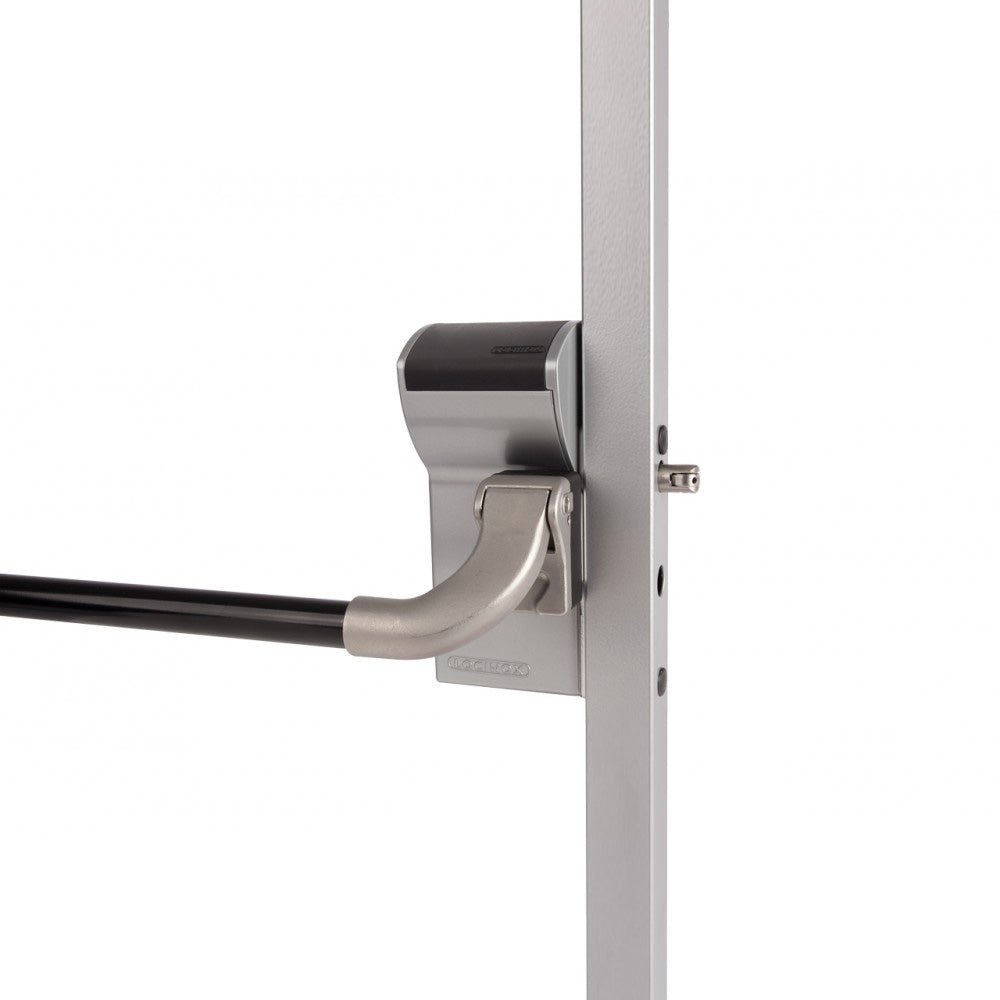

Push bar for easy opening of the gate by a simple push. The Push bar replaces the standard handle, Operates the daybolt and can quickly be installed on a new or existing locinox LA or LF chassis.
- Anodised black, aluminium pushbar with stainless steel mechanism
- Compatible with Locinox LA or LF Chassis
- Pressing the pushbar operates the daybolt
- Ideal in combination with Free Vinci lock
- For Left and Right turning gates

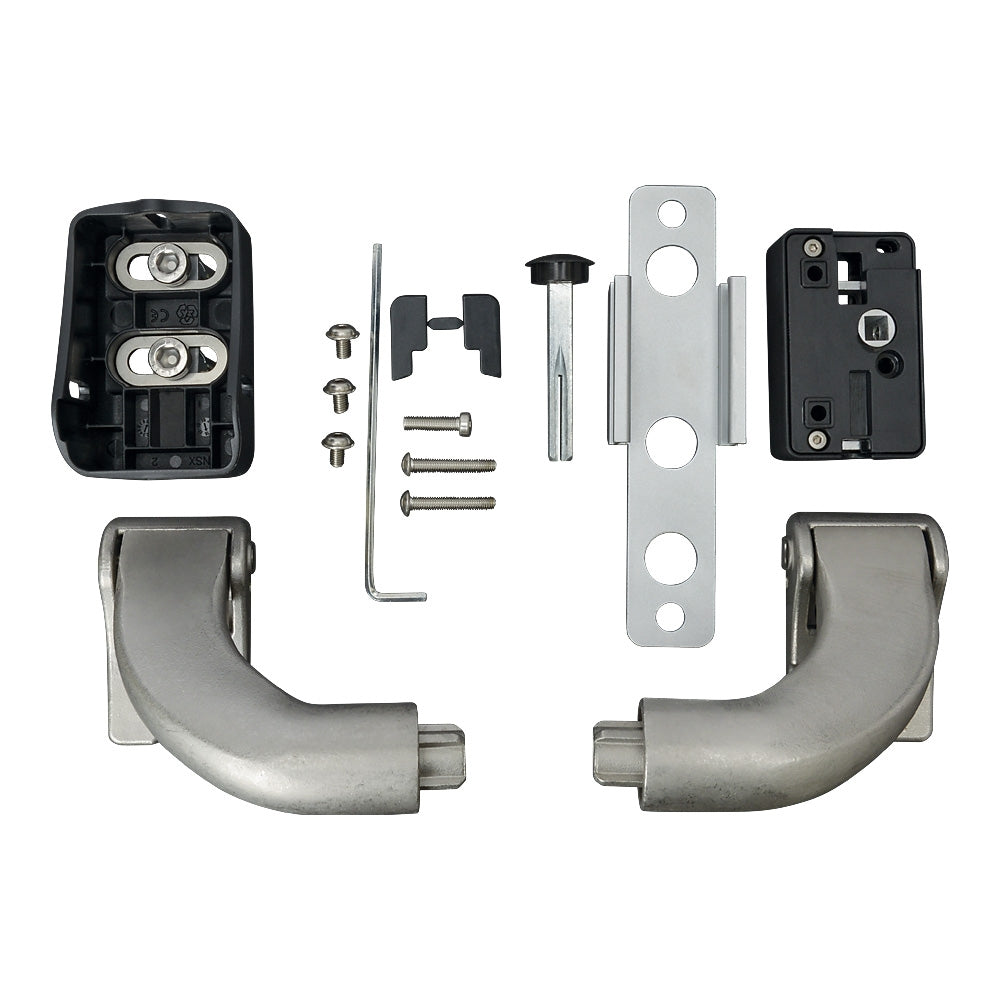

- Easy to install on the gate with Quick-Fix
- Delivered with blinded 8mm Follower
- Possible to combine with half handles sets with 8mm follower
- Maximum width 1,35 metres
- Pushbar Length - Standard 1150mm (can be shortened)
- Dummy cylinder recommended
Specifications
weight: 3.75 kg
length: 1400.0mm
width: 98.5mm
depth: 81.0mm
