Description
Locinox Sixtylock Kit To Suit 60mm Box Section with 2 x 2m Box Section

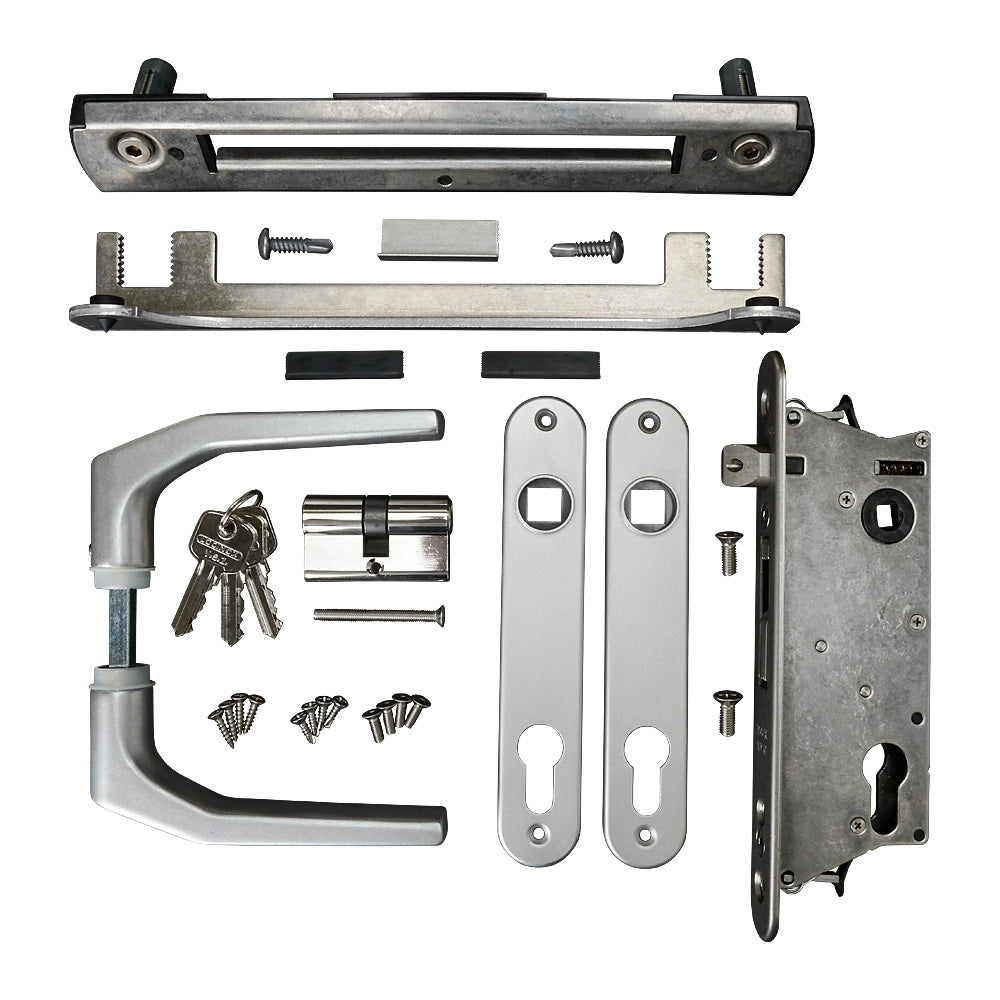

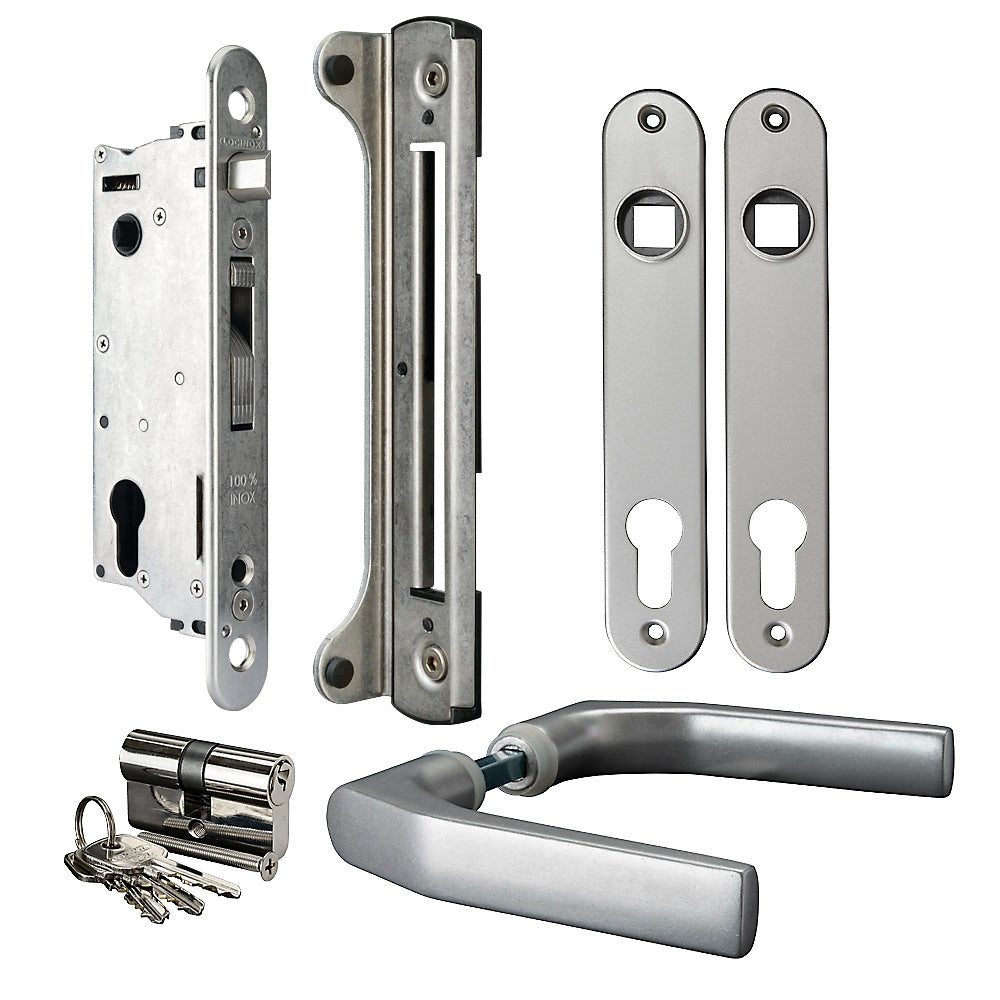

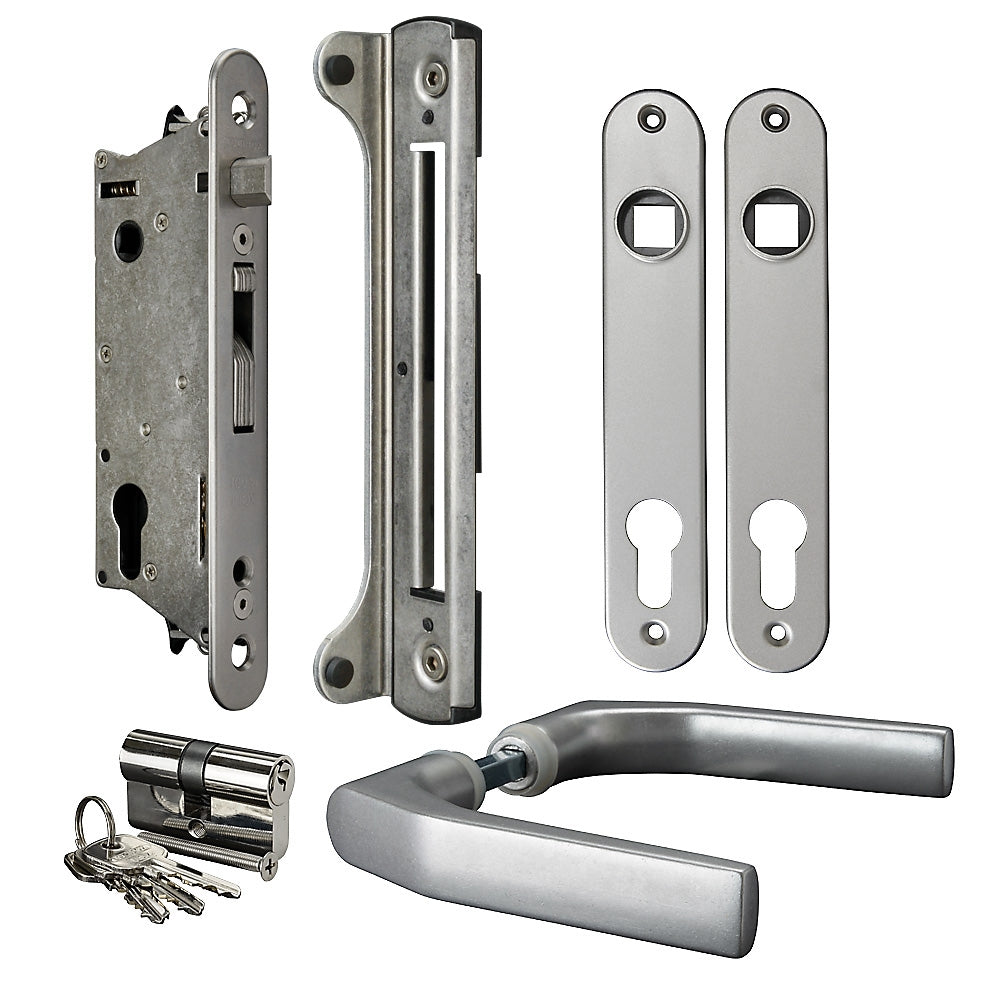

Kit Includes
- Lock
- 2 Alumininum Cover Plates
- Cylinder
- Alumininum Handle Set
- Stainless Steel Keep

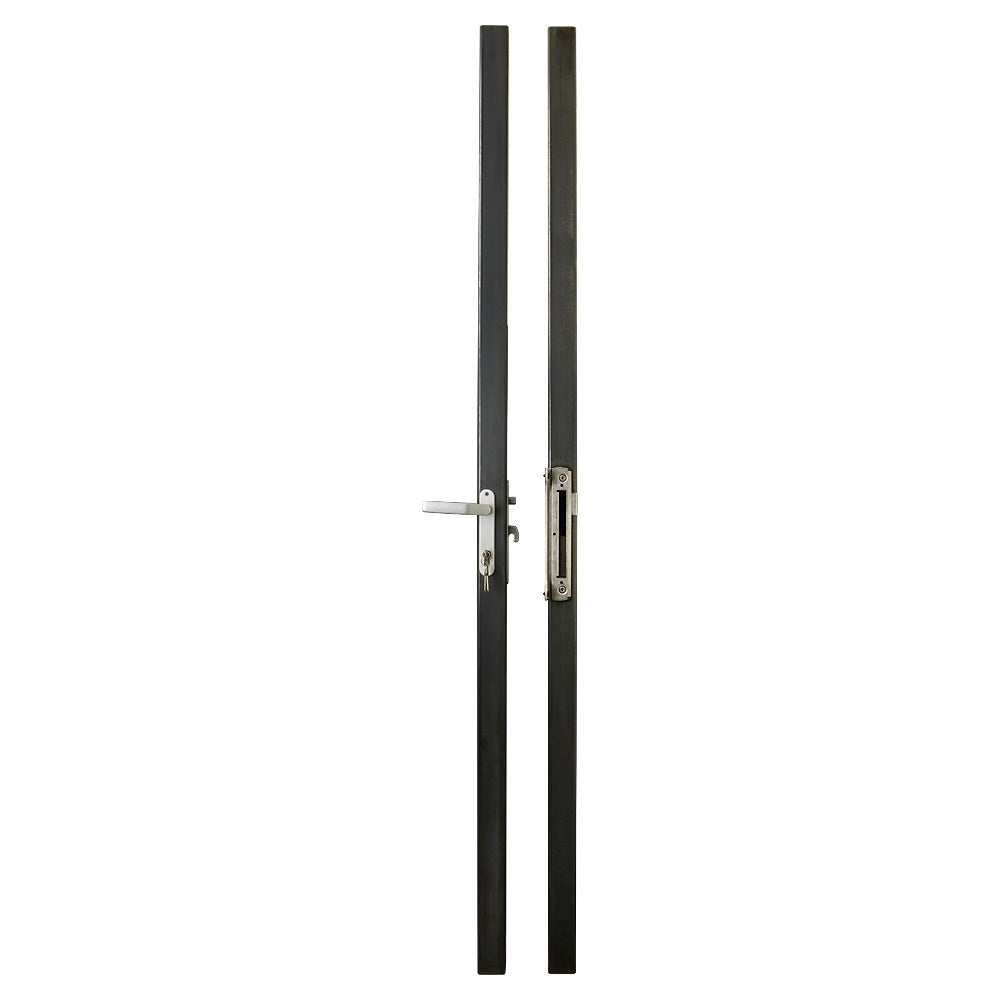

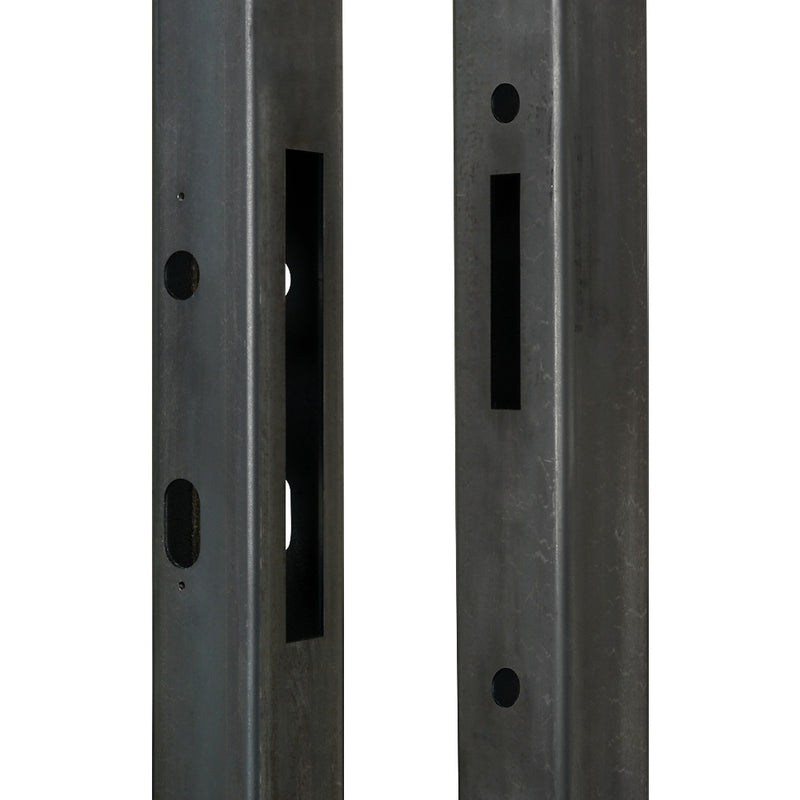

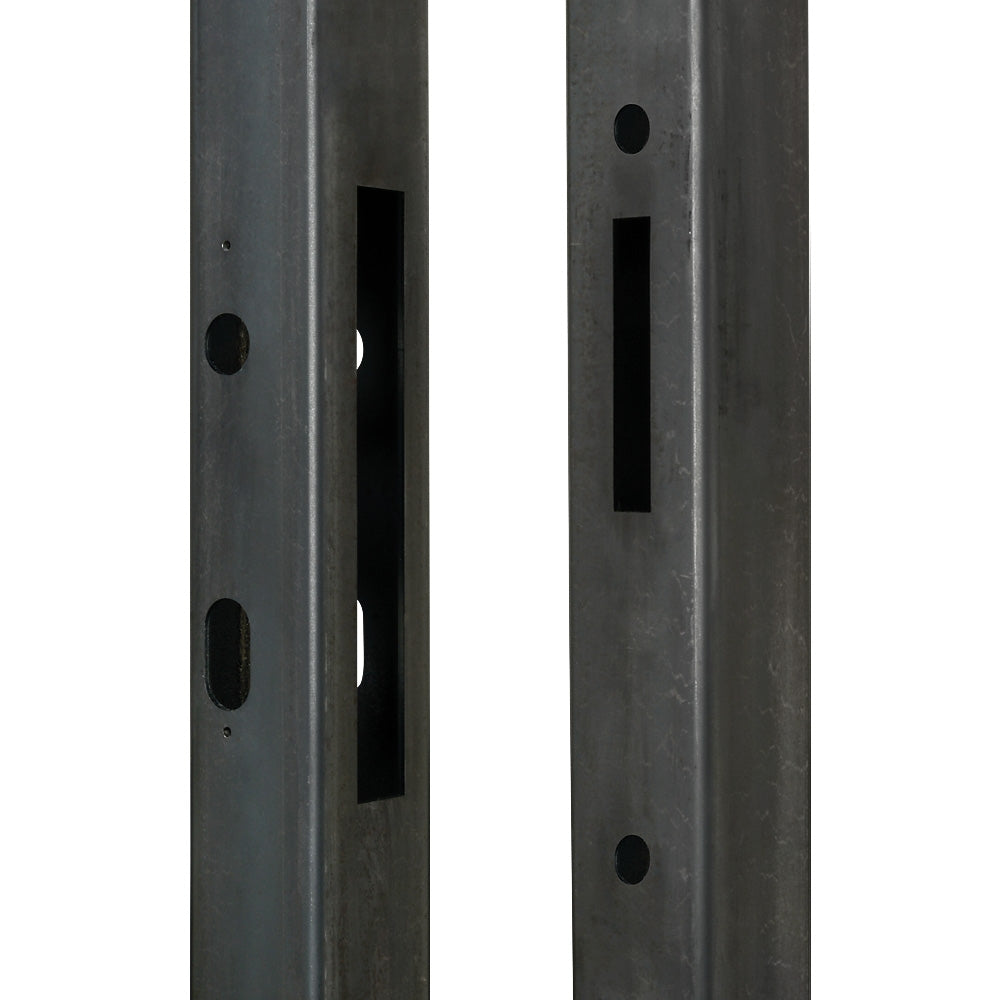

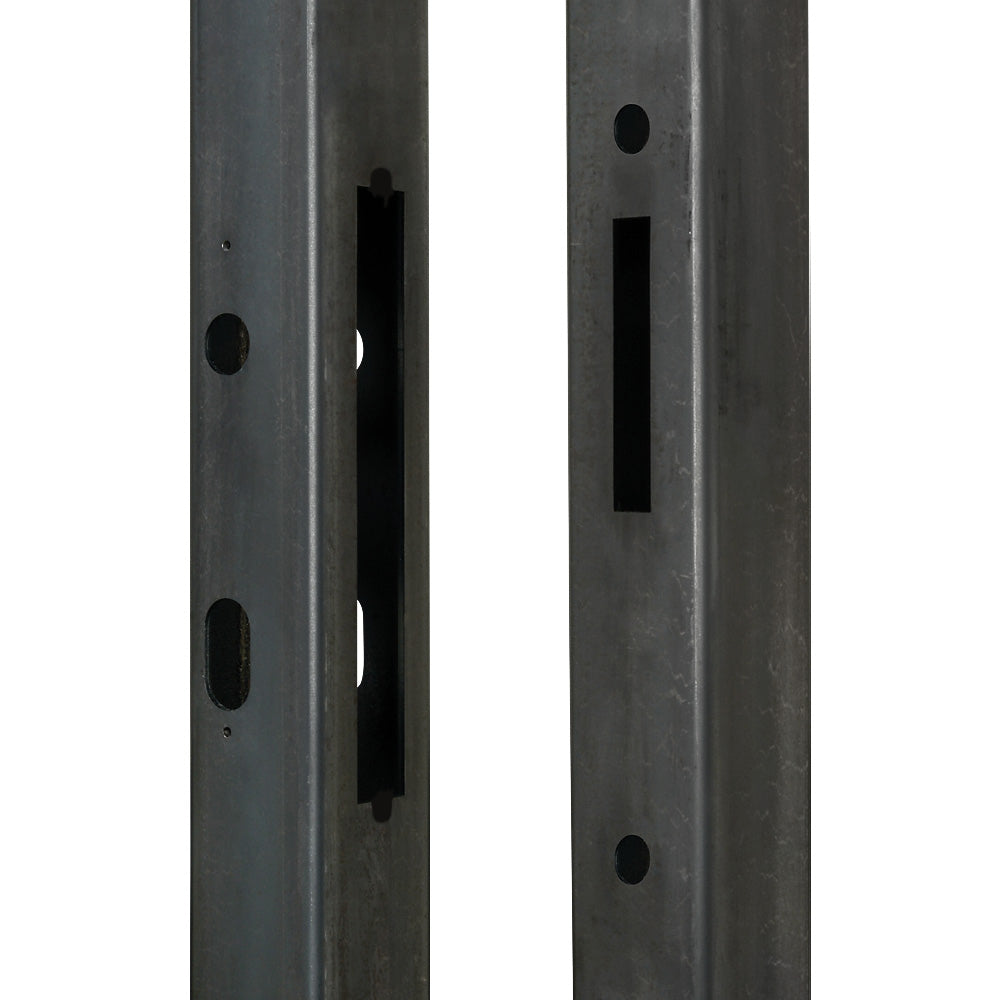

- 2 x 2000mm Profile Box Section to Suit Lock and Keep

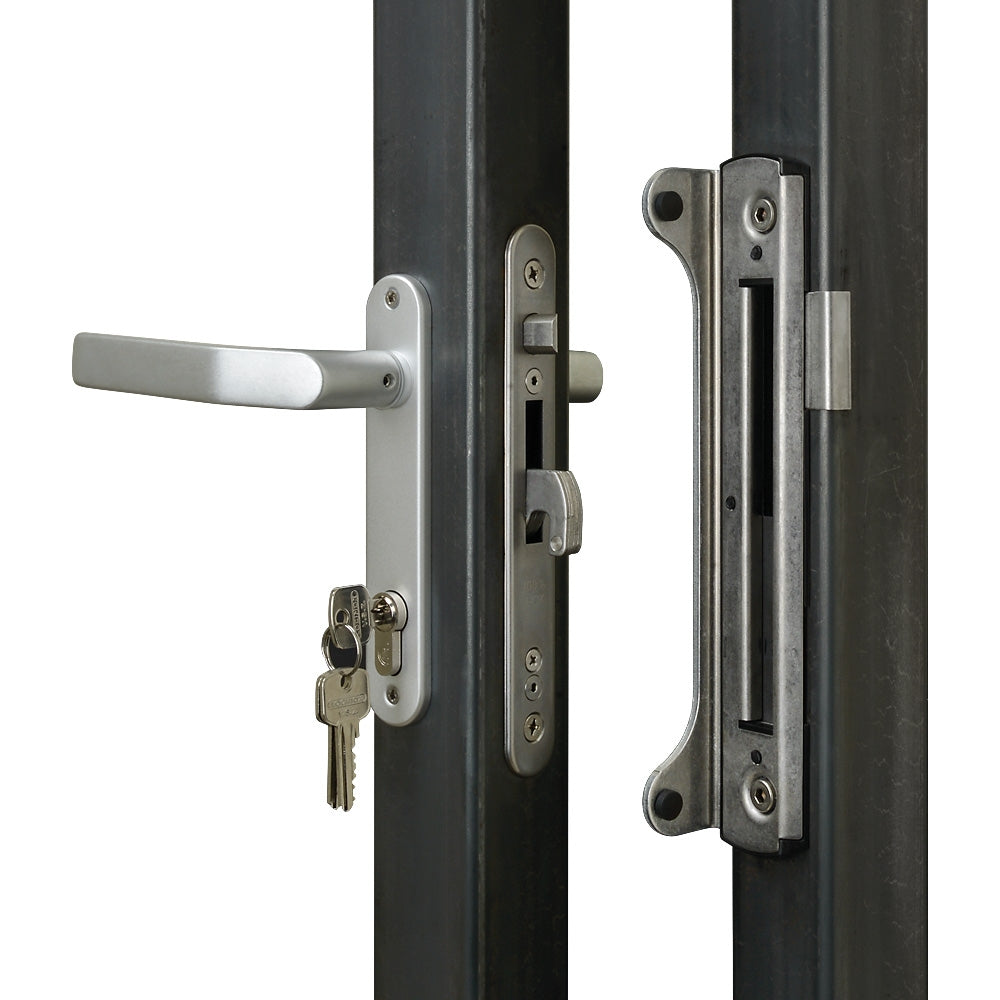

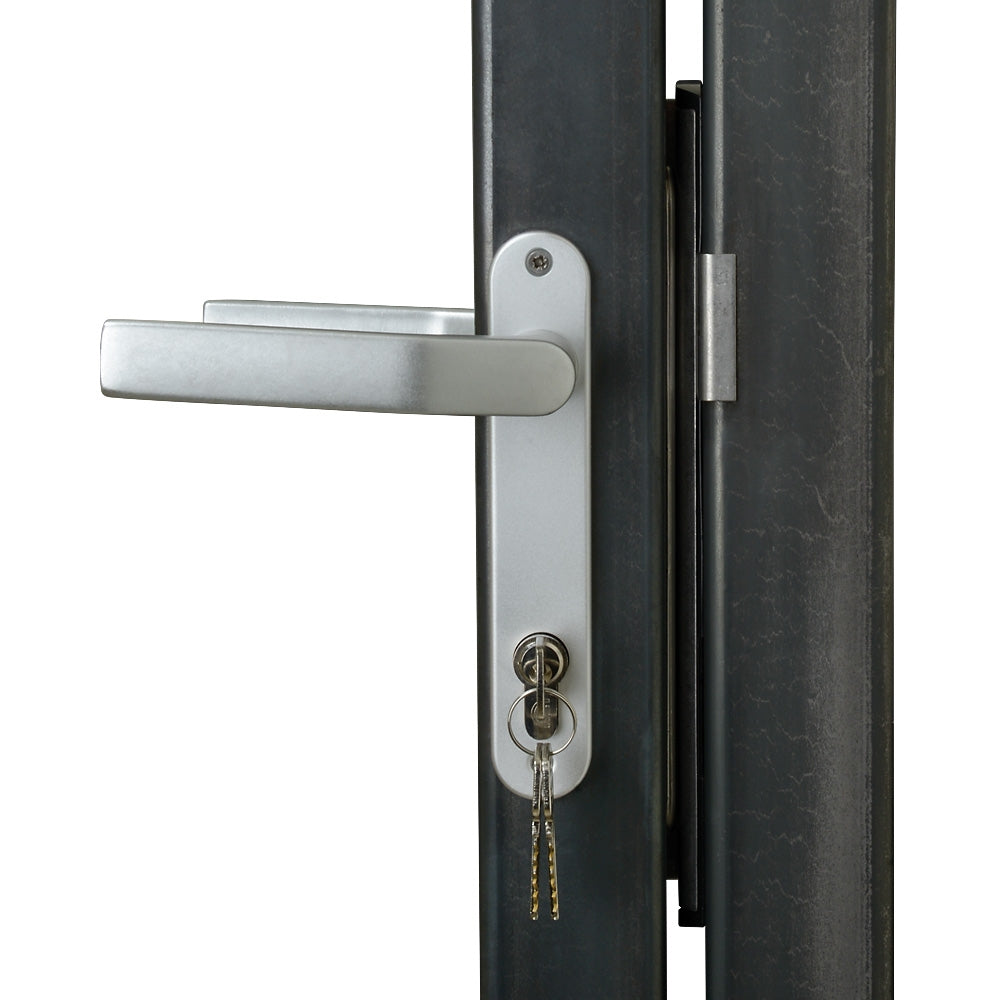

Insert Lock with 100% stainless steel mechanism. The Stainless steel and adjustable self-latching bolt combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminium and PVC Gates. Thanks to the patented " Click it " system, mounting the lock can be done in a matter of seconds.
- Lock mechanism with cover plate against dirt penetration
- Backset 40 mm, for mounting in profiles of 60 mm of depth or more
- Patented "Click-It" system makes tapping tread in the profile unnecessary
- Continuous adjustment of the daybolt up to 10 mm without dismounting the lockbox
- Key-operated self-latching bolt
- Mechanism, hook, frontplate, latchbolt: stainless steel
- Easy left or right changing of the self-latching daybolt
- Stainless steel hook for secure anchoring
- Throw of the hook: 21 mm
- Center-distance cylinder <=> handles => 92 mm
- Compatible with all Europrofile cylinders
Specifications
weight: 0.0 kg
length: 2000.0mm
width: 60.0mm
depth: 60.0mm
material: Mild Steel
material finish: Raw Steel
material size: 60x60mm
bar pattern: Plain
Product Documentation
GLF4 Product Dimensions
