Description

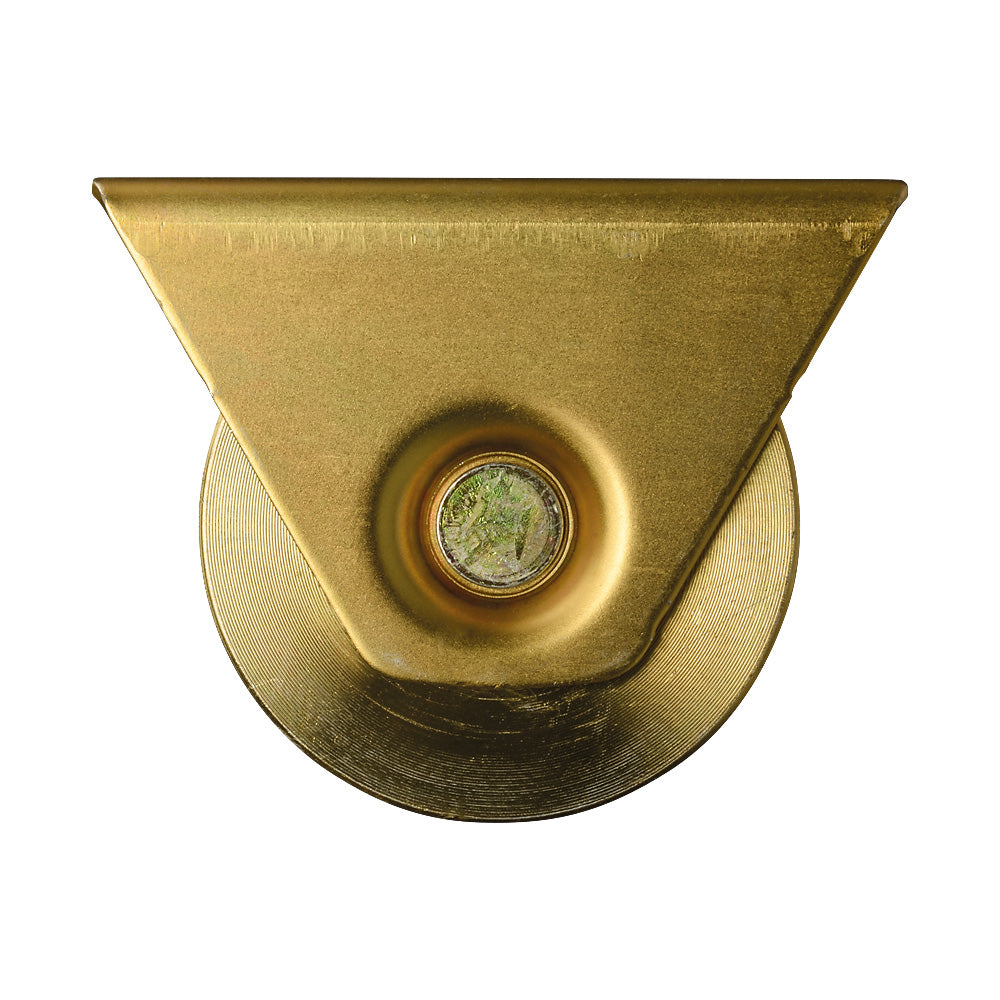

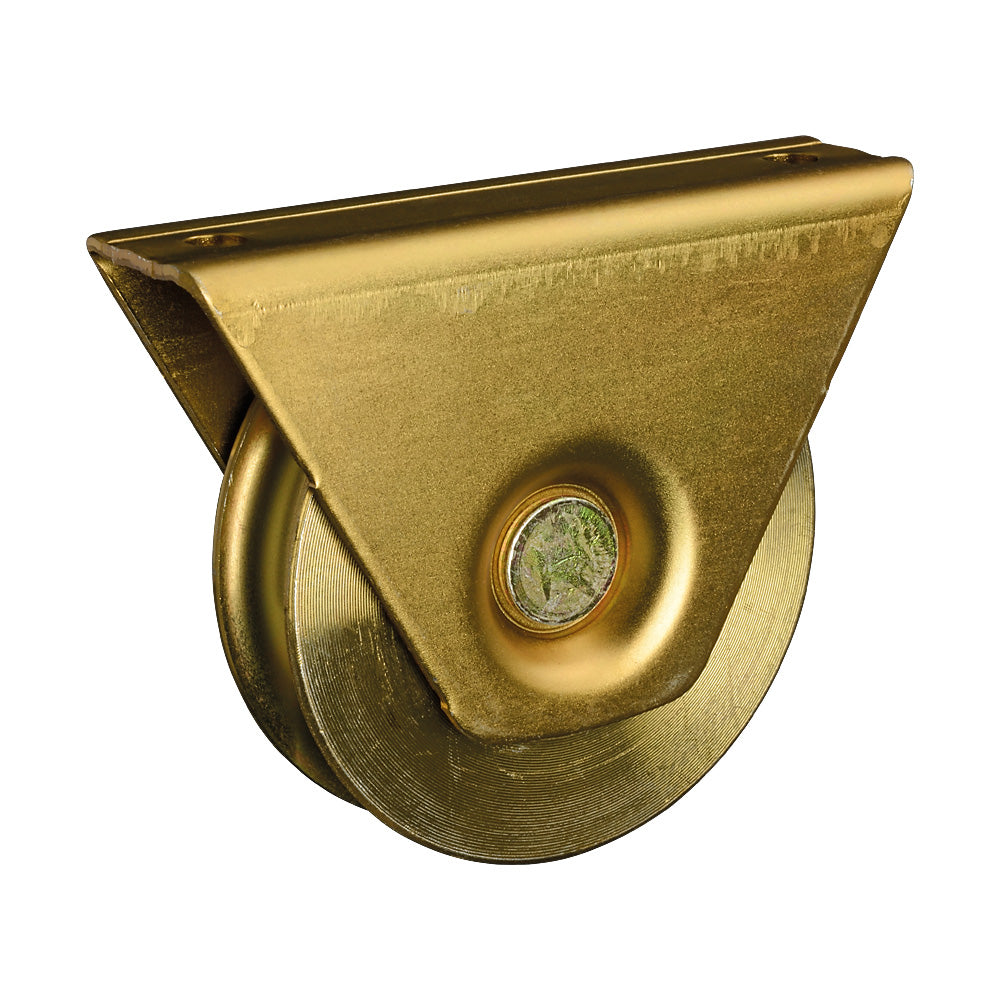

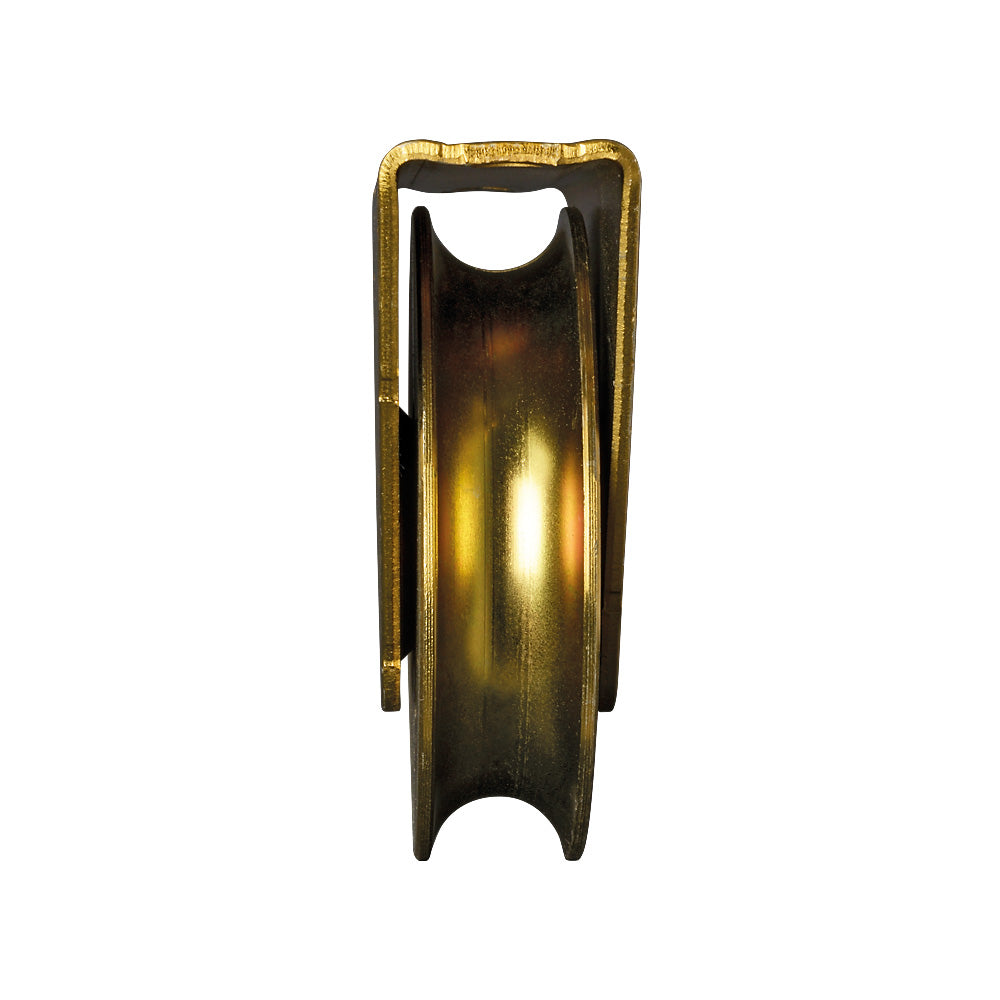

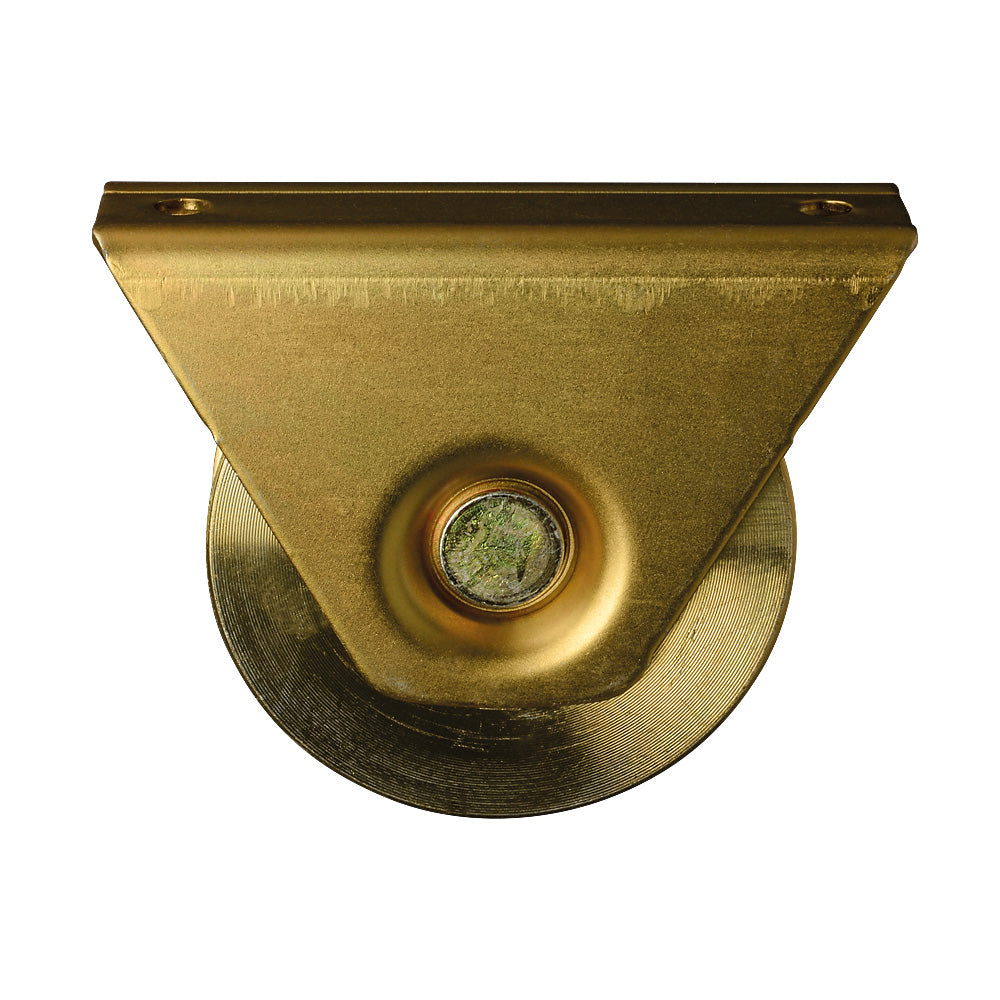

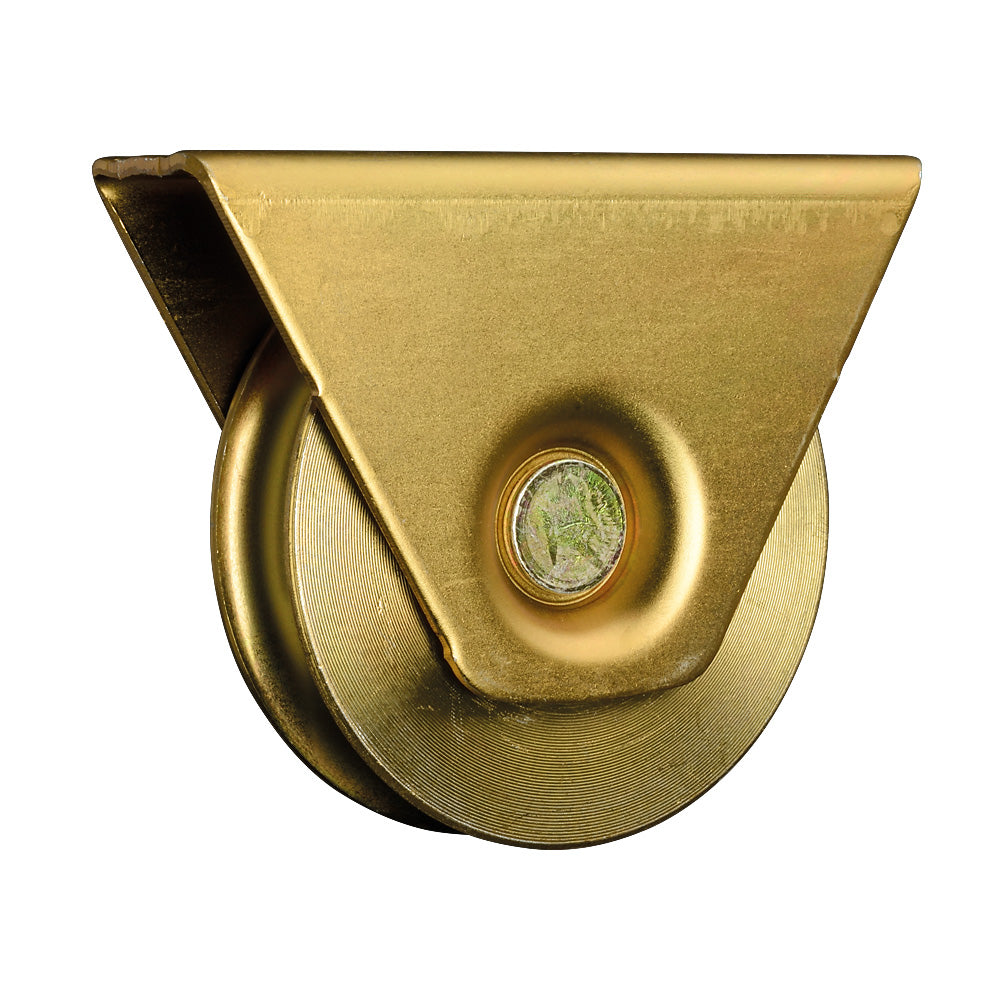

98mm Box Section Wheel for Slider
- Maximum weight limit 500kg
This wheel can be used on a gate in a sliding application. It can be fixed directly to the bottom of the gate or welded into a cut channel on box section. The overall height being 105mm and has 98mm diameter wheel and a 20mm diameter half round groove and can be used with our 3m ground track code AUTO020.
Specifications
weight: 1.28 kg
length: 105.0mm
width: 98.0mm
depth: 20.0mm
Product Documentation
AUTO024 Product Dimensions
