Key clamps are an excellent solution for constructing sturdy, modular structures such as handrails, safety barriers, furniture, and industrial frameworks. Their ease of use makes them perfect for both DIY enthusiasts and professional tradespeople.
Unlike traditional welded structures, key clamps require no special tools or expertise - just an Allen key and some basic planning. In this guide, we’ll take you through the entire installation process, from selecting the right clamps to assembling a solid and professional-looking structure.
What Are Key Clamps?
Key clamps, also known as tube clamps or pipe fittings, are metal connectors designed to secure sections of tubing without the need for welding.
They use a simple yet strong grub screw system to hold pipes in place, allowing for quick assembly and disassembly. Made from galvanised steel or malleable iron, key clamps are built for durability and long-term use in various environments.
Why Use Key Clamps?
- Easy to install: no welding or special skills required.
- Strong and durable: ideal for indoor and outdoor use.

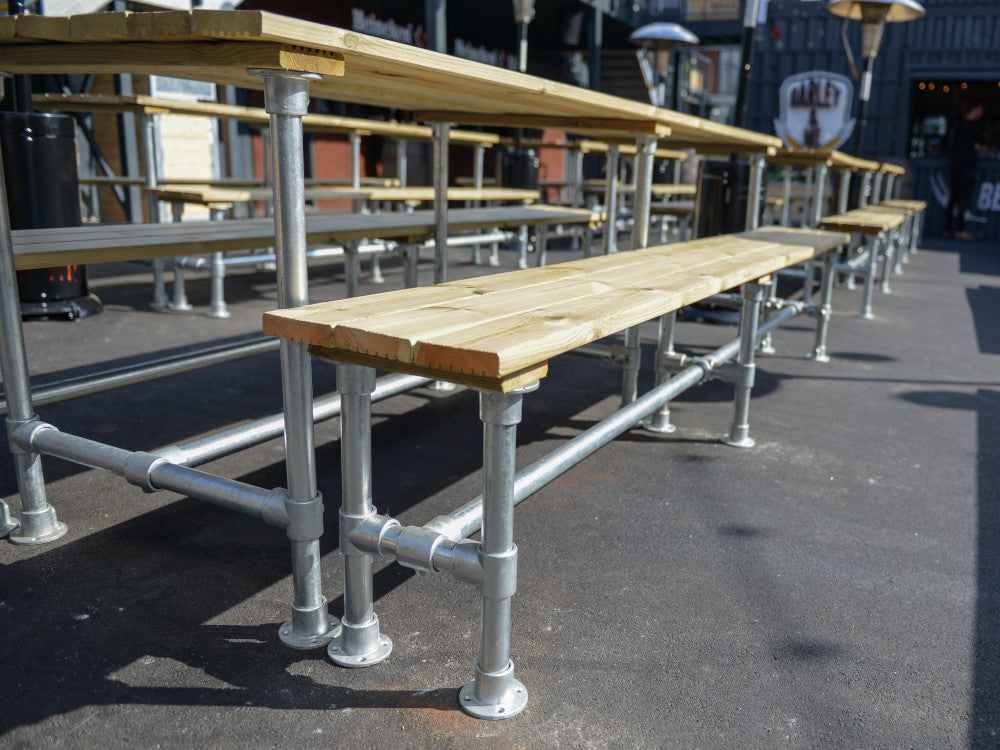

- Versatile: suitable for railings, frames, furniture, and more.
- Cost-effective: a budget-friendly alternative to welded structures.
- Reusable: easily disassembled and repurposed for different projects.
Step 1: Gather Your Materials and Tools
Before you begin, ensure you have all the necessary components for your project.
Materials You’ll Need
key clamps—select the appropriate types (e.g., elbow, T-joint, base plate, swivel) based on your design.
Steel or aluminium tubing—cut to size according to your project specifications.
Base plates (if needed)—for securing vertical posts to the ground or walls.
Tools Required
Allen key (hex key) or hex driver—Used to tighten grub screws on key clamps.
Tape measure—To ensure accurate pipe lengths and spacing.Marker or chalk—for marking positions on the pipes.
Drill and fixings (if needed) – To secure base plates or wall-mounted fittings.
Pipe cutter or hacksaw—if you need to cut pipes to size.
Step 2: Plan Your Design
Careful planning is key to a successful installation.
Consider These Factors
Layout and measurements: Sketch your design and double-check dimensions before cutting any pipes.
Load and stability: Ensure your structure is strong enough to support weight if used for safety barriers or furniture.
Clamp selection: Choose the correct clamps for angles, joints, and attachments.
Tip: Use a 3D design tool or an online key clamp configurator to visualise your project before starting assembly.
Step 3: Cutting and Preparing Your Pipes
If your pipes aren’t pre-cut to the required lengths, you’ll need to cut them manually.
How to Cut Pipes
Measure and mark—Use a tape measure and marker to indicate where to cut.
Secure the pipe—Clamp it in place to prevent movement.
Use a pipe cutter or hacksaw—cut along the marked line smoothly.
Sa d the edges—sand down sharp edges for a clean finish.
Tip: If using galvanised steel pipes, wear gloves to prevent injury from sharp edges.
Step 4: Assembling the Structure
Now comes the fun part—assembling your key clamp project.
How to Assemble Key Clamps
Position the first pipe—start with a vertical or horizontal section.
Slide on the first clamp—loosely fit it onto the pipe without tightening fully.
Add connecting pipes—Attach additional pipes into the clamps as per your design.
Tighten the grub screws – Use an Allen key to securely tighten each grub screw. Ensure they are snug but avoid over-tightening to prevent damage.
Repeat for remaining sections—continue attaching pipes and clamps until your structure is complete.
Tip: If your structure needs to be adjustable or transportable, leave some clamps slightly loose until final positioning is confirmed.
Step 5: Securing the Base
For structures like railings, fencing, or shelving, a firm base is essential. Securing Base Plates to the Ground:
For concrete floors: Use expansion bolts or anchor bolts.
For wooden surfaces: Use heavy-duty wood screws.
For walls: If attaching clamps to walls, ensure you use wall plugs and fixings suited for the material.
Pro Tip: Double-check alignment before drilling holes for base plates.
Step 6: Checking Stability and Making Adjustments
Before finalising your build, inspect the entire structure for stability.
Things to Check: Grub screws tightness—Ensure all are properly secured.
Alignment—Check for straight and level sections.
Structural integrity—Apply pressure to test for wobbling or weak points.
Fixing Issues: If a section is misaligned, loosen the clamp slightly, adjust the position, and re-tighten. If the structure wobbles, check base fixings and reinforce connections.
Step 7: Finishing Touches and Maintenance Tips
Once your key clamp project is complete, consider these finishing touches:
Rust prevention: If using steel pipes, apply a protective coating for outdoor use.
Paint or powder coating: For aesthetic appeal, paint or powder coat the structure.
Regular maintenance: Periodically check and tighten grub screws, especially for outdoor installations.
Tip: Use anti-corrosion spray for extra longevity in harsh environments.
Common Mistakes to Avoid
- Over-tightening screws—can strip the grub screw or damage the pipe.
- Incorrect clamp selection—Always ensure the clamps match the pipe diameter. Skipping base fixings can result in an unstable structure.
- Poor planning—Always measure and test fit before final tightening.
Why Choose DC Iron for Your Key Clamp Needs?
At DC Iron, we supply a wide range of key clamps and tube fittings. Whether you're building a simple railing or a complex framework, we have the components you need for a reliable and long-lasting build.
Installing key clamps is an easy and rewarding process, whether you’re building a railing, shelving unit, or industrial frame. With the right materials, tools, and planning, you can create strong, professional-quality structures in no time.
